Large SUS301 Flat Wire Compression Spring 4mm Hourglass Cylindrical Structure

Name: Large SUS301 Flat Wire Compression Spring 4mm Hourglass Cylindrical Structure
Brand: Liyu
Price: 1 USD

End Type : Closed Ends, Open Ends, Ground Ends, Closed & Ground Ends

Brand Name : Liyu

Packaging Details : Standard export packaging

Name : Compression Spring

Wire Diameter : 0.05–20 mm or Customized

Surface Treatment : Zinc Plated, Nickel Plated, Chrome Plated, Black Oxide, Electrophoresis, Powder Coating, Passivation, None

Price : Negotiation

Certification : ISO14001；ISO13485；IATF16949

Model Number : Compression Spring

MOQ : 1 set

OEM/ODM : Supported

Drawing : PDF / CAD / STEP / IGES / DWG

Application : Automotive, Medical, s, Industrial Equipment, Agricultural Machinery, Aerospace, Consumer Products

Payment Terms : L/C,T/T

Sample : Available

Place of Origin : China

Material : Stainless Steel (304, 316, 302), Music Wire, Carbon Steel, Oil Tempered Wire, Chrome Silicon, Chrome Vanadium, Inconel X750, Monel, Hastelloy, Phosphor Bronze, Beryllium Copper, Titanium

Contact Now

Compression spring·CUSTOMIZATION

Small compression springs are widely used in s, switches, instruments, consumer products, and precision devices. Our miniature compression springs are manufactured with high accuracy and excellent elasticity to ensure smooth operation and reliable performance. We can produce small diameter springs with customized designs, materials, and specifications for different applications.

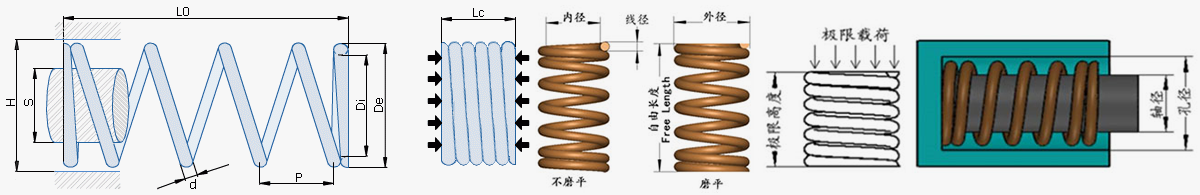

Technical parameters of cylindrical spiral compression spring

Large SUS301 Flat Wire Compression Spring 4mm Hourglass Cylindrical Structure

To customize the compression spring, you need to provide the following necessary parameter information:
Wire diameter d: mm	(Note: the diameter of the spring wire)
Outer diameter D2: mm	(Note: the diameter of the outer circle of the spring)
Length L0: mm	(Note: the free height of the spring)
Number of circles Na: circle	(Note: the total number of turns of the spring)
For customized compression springs, you also need to provide the following technical requirements:
turn around:	(Description: Left-handed Right-handed)
Material requirements:	(Such as: stainless steel wire SUS, carbon steel wire SWC, piano wire SWP, copper wire... etc.)
Surface treatment:	(Description: blackening/galvanizing/nickel plating/chrome plating/baking paint/powder spraying/electrophoresis/shot peening/dacromet/electrolytic polishing...etc.)
End form:	(Explanation: TightenGrindTightly polish)
Strength requirements:	(Note: Elastic performance, other technical requirements, etc.)

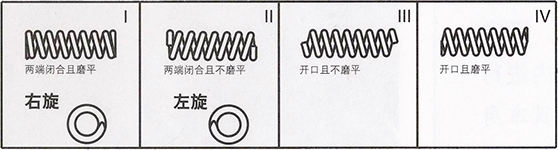

Spring end characteristics

Characteristic	Parameter
Structural Features	Cylindrical
	Hourglass
	Shrink both ends
	Fixed pitch
	Conical
	Closed at both ends
	The ends are flat
	Variable pitch
	Barrel
	Two End opening
	The ends are not flat
Surface treatment	Blackening
	Shot Peening
	Apply anti-rust oil
	Zinc plating
	Polishing
	Electrolytic polishing
	Nickel plating
	Dacromet
	Teflon spray
Materials	Carbon spring steel wire SWC
	Piano wire SWPB
	Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
	65Mn
	82B
	55CrSi (SWOSC-V)
	Nickel-plated wire, galvanized wire
	Copper wire, phosphor copper wire, beryllium copper wire
	Square wire, flat wire, semicircular wire
	Alloy material wire
	Other special specifications steel wire
Wire diameter specifications	0.1~6mm
